The standard MED Probe has 64 microelectrodes and is available with 2 types of (5 mm or 10 mm height) chamber height.
Special arrangement (Hippocampal array, Hexagonal) and probe for multi- sample processing are also available.
Med Probe Electrode Zoom

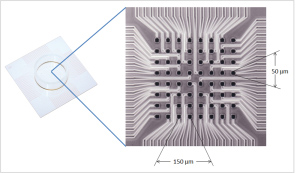

MED Probe (left) and zoom-up view of the microelectrodes in the MED-P515A
| Product Number | Array Size | Recording Electrodes | Reference Electrodes | Chamber Depth | ||
| Size | Spacing | Type | Spacing (d) | |||
| MED-P2105 | 0.7 × 0.7 mm | 20 × 20 μm | 100 μm | A | 8.5 mm | 5 mm |
| MED-P210A | 0.7 × 0.7 mm | 20 × 20 μm | 100 μm | A | 8.5 mm | 10 mm |
| MED-P5155 | 1 × 1 mm | 50 × 50 μm | 150 μm | B | 8.5 mm | 5 mm |
| MED-P515A | 1 × 1 mm | 50 × 50 μm | 150 μm | B | 8.5 mm | 10 mm |
| MED-P5305 | 2 × 2 mm | 50 × 50 μm | 300 μm | B | 9.2 mm | 5 mm |
| MED-P530A | 2 × 2 mm | 50 × 50 μm | 300 μm | B | 9.2 mm | 10 mm |
| MED-P5455 | 3 × 3 mm | 50 × 50 μm | 450 μm | B | 10.2 mm | 5 mm |
| MED-P545A | 3 × 3 mm | 50 × 50 μm | 450 μm | B | 10.2 mm | 10 mm |
